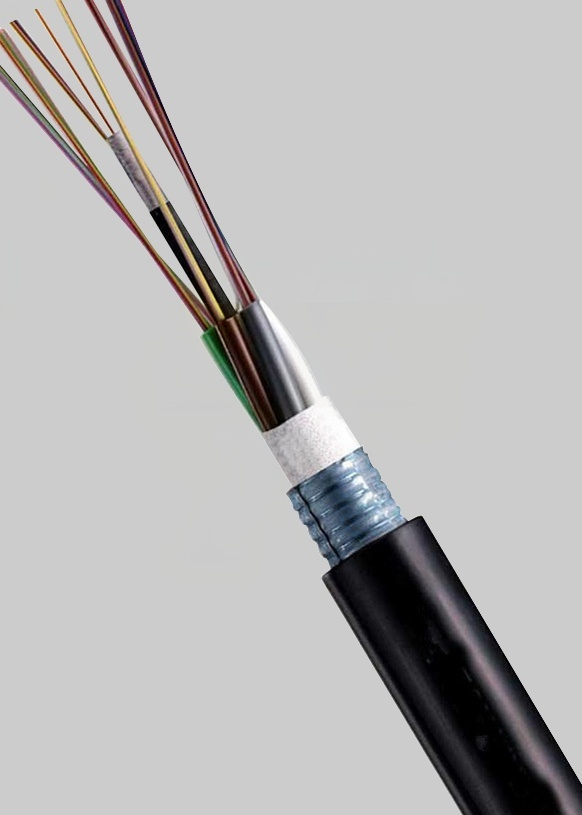

Construction: The Corning SMF-28e+ G652.D optical fibers are placed within color-coded, gel-filled loose tubes for protection from mechanical and environmental forces. The loose tubes are then stranded around a central strength member. A water-blocking tape and/or laminated aluminum plastic tape/ laminated steel plastic armor can be applied longitudinally. And a black polyethylene jacket or halogen-free low smoke flame retardant polyolefin is applied to complete the construction of the cable.
Application： This product is suitable for use in communication distribution system.
Standard： IEC 60793、IEC 60794、YD/T 901 or other standards required by customers.
Type and Description
|
No. |
Type |
Description |
|
1 |
GYTY
GYTZY |
Metal strength member loose tube stranding fully filled type PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding fully filled type halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
2 |
GYY
GYZY |
Metal strength member loose tube stranding semi-dry type PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding semi-dry type halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
3 |
GYFTY
GYFTZY |
Non-metal strength member loose tube stranding fully filled type PE sheath outdoor optical fiber cables for telecommunication Non-metal strength member loose tube stranding fully filled type halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
4 |
GYFY
GYFZY |
Metal strength member loose tube stranding semi-dry type PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding semi-dry type halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
5 |
GYTA
GYTZA |
Metal strength member loose tube stranding fully filled type laminated aluminum plastic strip and PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding fully filled type laminated aluminum plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
6 |
GYA
GYZA |
Metal strength member loose tube stranding semi-dry type laminated aluminum plastic strip and PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding semi-dry type laminated aluminum plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
7 |
GYFTA
GYFTZA |
Non-metal strength member loose tube stranding fully filled type laminated aluminum plastic strip and PE sheath outdoor optical fiber cables for telecommunication Non-metal strength member loose tube stranding fully filled type laminated aluminum plastic strip halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
8 |
GYFA
GYFZA |
Non-metal strength member loose tube stranding fully filled type laminated steel plastic strip and PE sheath outdoor optical fiber cables for telecommunication Non-metal strength member loose tube stranding fully filled type laminated steel plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
9 |
GYTS
GYTZS |
Metal strength member loose tube stranding fully filled type laminated steel plastic strip and PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding fully filled type laminated steel plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
10 |
GYS
GYZS |
Metal strength member loose tube stranding semi-dry type laminated steel plastic strip and PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding semi-dry type laminated steel plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
11 |
GYFTS
GYFTZS |
Non-metal strength member loose tube stranding fully filled type laminated steel plastic strip and PE sheath outdoor optical fiber cables for telecommunication Non-metal strength member loose tube stranding fully filled type laminated steel plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
|
12 |
GYFS
GYFZS |
Metal strength member loose tube stranding semi-dry type laminated steel plastic strip and PE sheath outdoor optical fiber cables for telecommunication Metal strength member loose tube stranding semi-dry type laminated steel plastic strip and halogen-free polyolefin sheath flame retardant outdoor optical fiber cables for telecommunication |
Note：We can design and produce optical cables according to customers requirements of cable structures or type.
